STROBOSCOPES
Designed for web scanning beyond the speed
Achieving flawless manufacturing quality in less time with instantaneous results is now very easy with Alteem’s online high-speed, web-inspection stroboscopes. With an eye for crisp detail and a flashing range of up to 6000 FPM, our stroboscopes can detect even microscopic defects in the production line in a flash of a second. This greatly facilitates in identifying discrepancies like shifting of registration, colour splashes/sprays and mismatches, linings, overlaps, fading, folds, and many more such errors.
Alteem’s Stroboscopes are designed with a user-friendly interface and require zero maintenance. Our equipment offers sharp visibility, high-level accuracy, long and durable life, and superlative performance. It is suitable for a wide range – from 250 mm to 1300 mm web-width, with automatic as well as manual options. This highly effective component can be used for lamination, slitting, doctoring, and printing, and can reduce physical interference resulting in huge savings in labour and production costs , thereby increasing profitability and productivity.

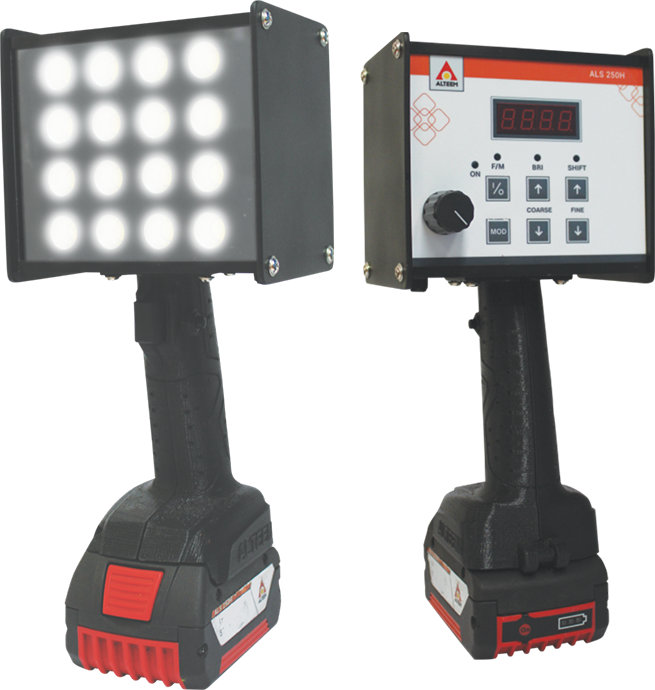

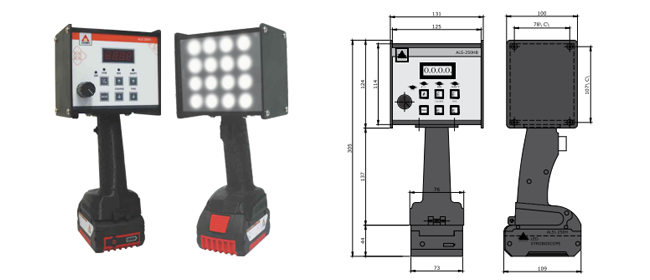

LED 250 HB Stroboscope
Features
- Battery Operated – 48 Hrs. battery backup
- Adjustable light intensity
- LED Display accompanied with functional indicators
- Shift picture up & down easily for inspection
- Precise print quality monitoring
- Ultra High brightness
- Uniform illumination
- High quality Construction
- Lower glare on reflective materials
- Replaceable Li-Ion battery
- Low-wear technology with LEDs

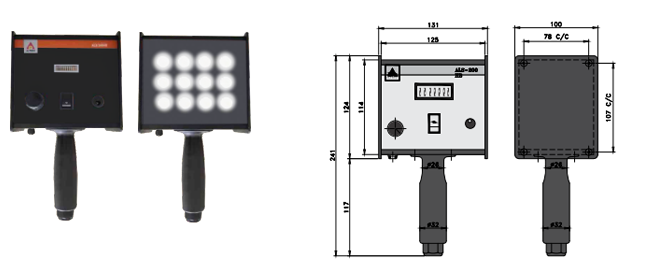

LED 200 HB Stroboscope
Features
- Battery Operated – 10 Hrs. battery backup
- Light Weight
- Accurate print quality monitoring
- High Brightness
- Easily set Stop-motion image
- Battery level indication display
- Low-wear technology with LEDs.

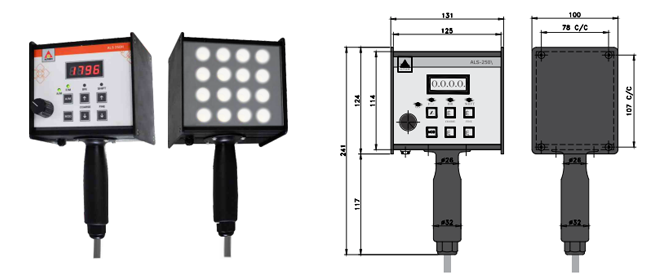

LED 250 H Stroboscope
Features
- Cable Operated -210-250VAC,50Hz
- Adjustable light intensity
- Precise print quality monitoring
- Ultra High brightness
- Uniform illumination
- Shift picture up & down easily for inspection
- High quality Construction
- Low-wear technology with LEDs
- Lower glare on reflective material
- LED Display accompanied with functional indicators
TECHNICAL DATA
| General Parameter | ALS-250HB | ALS-200HB | ALS-250H |
|---|---|---|---|
| Display | 4 Digit Seven Segment | – | 4 Digit Seven Segment |
| Light Source | LED (16Nos) | LED (12Nos) | LED (16Nos) |
| Accuracy | 0.1 Hz | 0.1 Hz | 0.1 Hz |
| Web Scan | 250mm | 200mm | 250mm |
| Frequency Range | 366-6000 FPM | 366-6000 FPM | 366-6000 FPM |
| Battery (German) | 4000mah Li-on | 4400mah Li-on | 210-250VAC,50Hz |
| Housing Material | Aluminum | Aluminum | Aluminum |
| LED Light Intensity | 1190 Luminous flux @ 85 centigrade | 509 Luminous flux @ 85 centigrade | 1190 Luminous flux @ 85 centigrade |
| Shift | 20°+5° | – | 20°+5° |
| Weight | 1.6 Kg | 1.14kg | 1.42Kg |

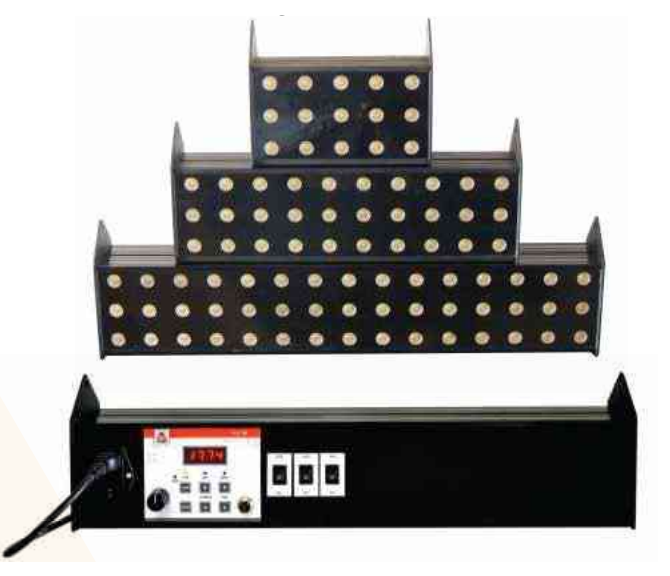

LED Stroboscope M/C Mounted

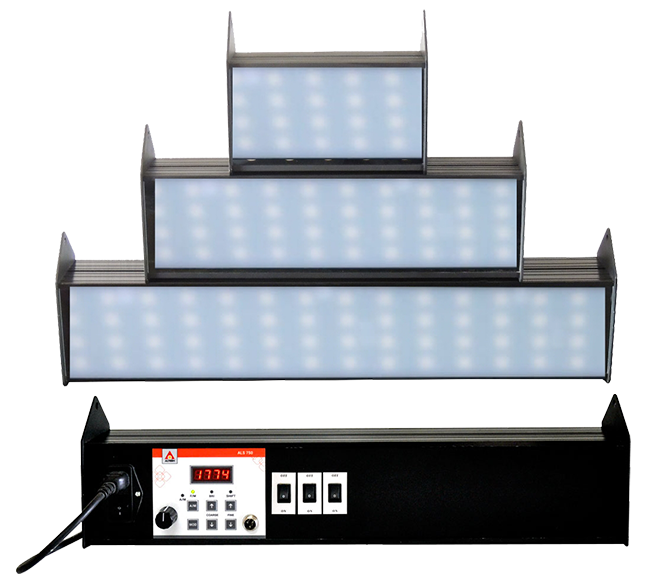

Alteem’s Machine-mounted LED Stroboscope is designed for continuous wide-width inspection in high-speed applications to detect even the most minute print errors in a split second. Its most notable feature of full-width inspection allows the operator to execute quick judgments for the errors and reduce overall wastage, thereby greatly improving print quality. Alteem’s Machine-mounted ALS series of stroboscopes are available in various options ranging from web-scanning capacity of 250mm to 1250mm, ensuring coverage of any job size.
TECHNICAL DATA
| General Parameter | ALS-250HB | ALS-200HB | ALS-250H | ALS-200HB | ALS-250H |
|---|---|---|---|---|---|
| Display resolution | 4 Digit Seven Segment | ||||
| Display Size | 0.1 Hz | ||||
| Operating Mode | 12VDC | ||||
| Web Scan | 250mm | 500mm | 750mm | 1000mm | 1250mm |
| Light Source | LED (20Nos) | LED (20Nos) | LED (60Nos) | LED (100Nos) | LED (100Nos) |
| LED Light Intensity | 1190 Luminous flux @ 85 centigrade | ||||
| Flash Range(Auto Mode) | 90-6000 FPM | ||||
| Flash Range(Manual Mode) | 366-6000 FPM | ||||
| Flash color | Cool White (4000-5000K) | ||||
| Shift | 20°+5° | ||||
| Power Supply | 210-250VAC,50Hz | ||||
| Housing Material | Aluminum | ||||
| Dimensions (LxWxH)mm | 206x125x168 | 406x125x168 | 606x125x168 | 1006x125x168 | 1206x125x168 |
| Weight | 1.42KG | 2.33G | 3KG | 4.2KG | 4.72KG |
| No. of On Off Switch–356 | |||||
| Temperature0-50°C/32-122°F | |||||
Features
- Battery Operated – 10 Hrs. battery backup
- Light Weight
- Accurate print quality monitoring
- High Brightness
- Easily set Stop-motion image
- Battery level indication display
- Low-wear technology with LEDs.
LED DIMENSION TABLE
| SR.NO. | LED MODEL | A | A1 | B | C | D | E | F | G | SWITCH QTY |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | ALS-250 | 200 | 206 | 168 | 114 | 100 | 78 C/C | 107 C/C | 146 C/C | 0 |
| 2 | ALS-500 | 400 | 406 | 168 | 114 | 100 | 78 C/C | 107 C/C | 146 C/C | 0 |
| 3 | ALS-750 | 600 | 606 | 168 | 114 | 100 | 78 C/C | 107 C/C | 146 C/C | 3 |
| 4 | ALS-1000 | 1000 | 1006 | 168 | 114 | 100 | 78 C/C | 107 C/C | 146 C/C | 5 |
| 5 | ALS-1250 | 1200 | 1206 | 168 | 114 | 100 | 78 C/C | 107 C/C | 146 C/C | 6 |

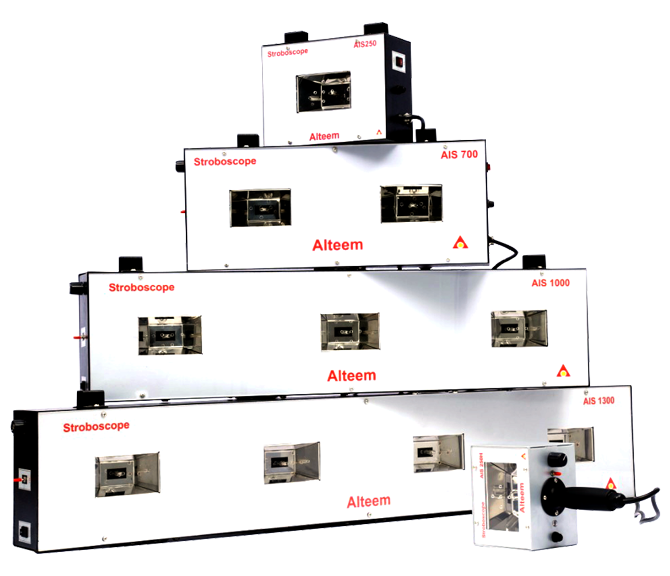

STROBOSCOPE
Achieving flawless manufacturing quality in less time with instantaneous results is now very easy with Alteem’s online high-speed, web-inspection stroboscopes. With an eye for crisp detail and a flashing range of up to 6000 FPM, our stroboscopes can detect even microscopic defects in the production line in a flash of a second. This greatly facilitates in identifying discrepancies like shifting of registration, colour splashes/sprays and mismatches, linings, overlaps, fading, folds, and many more such errors.
Features
- 230V AC, 50 Hz Power Supply
- High Temperature Resistant
- Accurate Strobe Control
- Portable and easy to move
- Light weight and easy to handle
- Long life xenon lamp
