Back To Back Registration Control

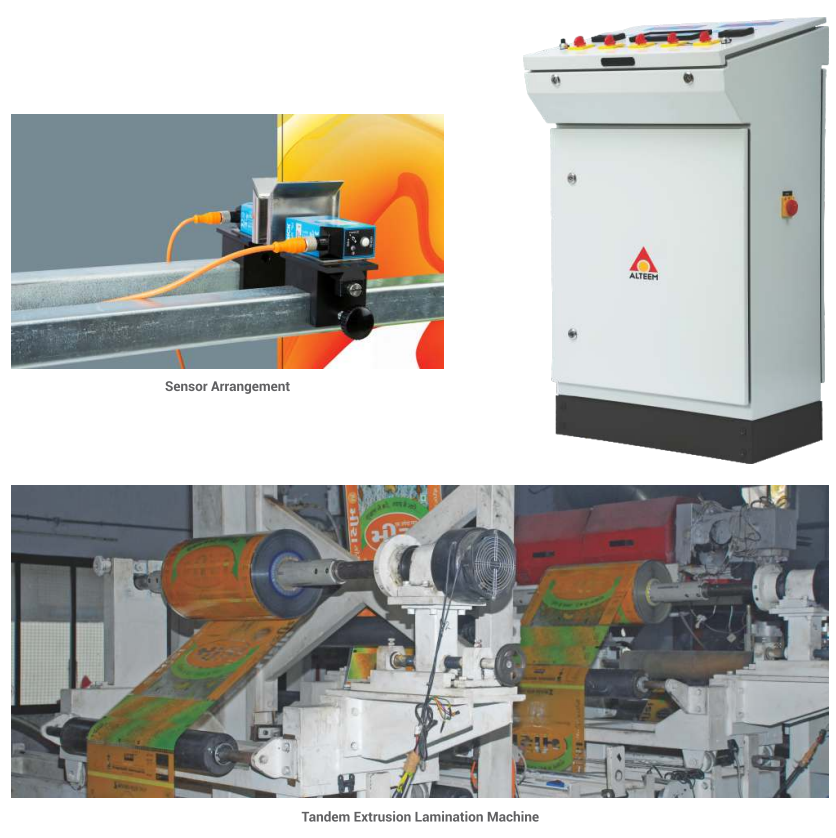

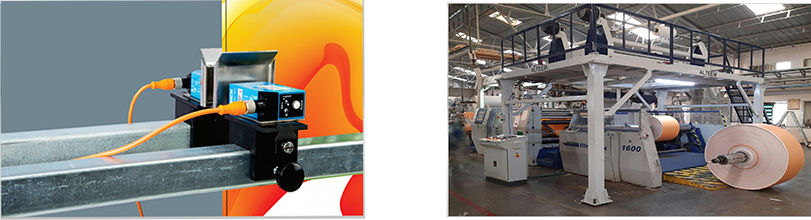

Alteem Back to back registration ABR-101, facilitates the back to back matching of the printed film on the fabric, with reduction in the wastage. In this system two mark sensors are used. Two Sensors attached gives the feedback of the displacement for front and back printed marks on the film , this displacement error is further manipulated by the control module and accordingly corrected output of displacement error is generated which controls the brake.

Features
  1. Automatic search for registration mark

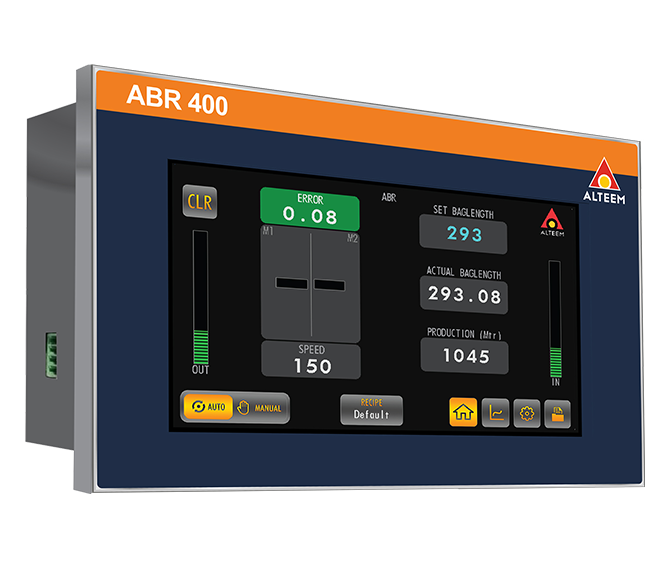

  2. User-friendly stand alone module with LCD display
  3. High speed embedded board is used for data processing
  4. The embedded card measures displacement errors
  5. between two marks and controls the brakes accordingly
  6. Different alarms for various errors
