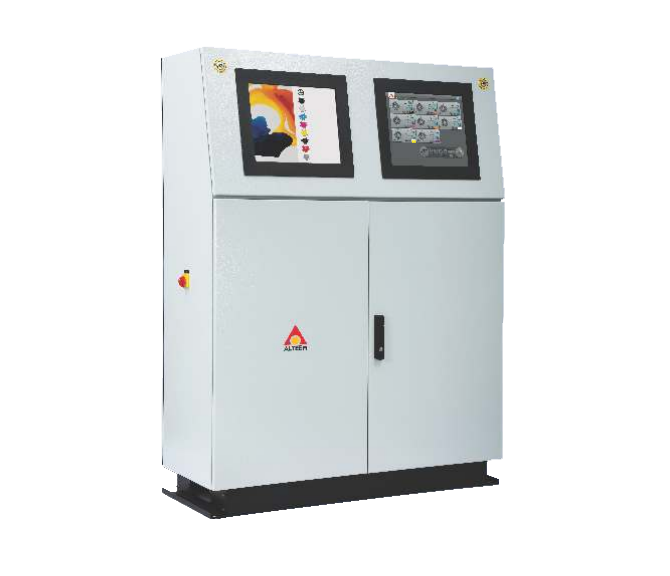

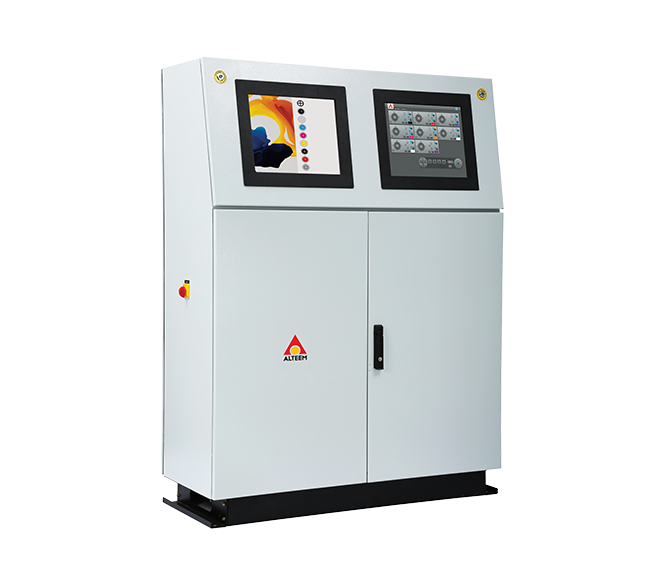

Automatic Registration Control System

Alteem automatic registration control system uses superior technology, which enables more accuracy, efficiency and productivity. ARC is a registration controller designed in order to obtain maximum operation flexibility combined with best reduction in scraps.

Features

  1. Automatic search for registration mark
  2. User-friendly HMI
  3. Digital oscilloscope to detect mark displacement
  4. High speed embedded board is used for data processing and communication with industrial CPU
  5. The latest state-of-the-art FPGA technology gives control command to the interface cards of the motor driving system for registration controls
  6. Database for job storage, which includes unit register setting. We can also recall the old job
  7. The embedded card measures vertical and horizontal error parallel of all color and transmits the requirement data to motor control of all colours.

SYSTEM OVERVIEW

Colour Sensor

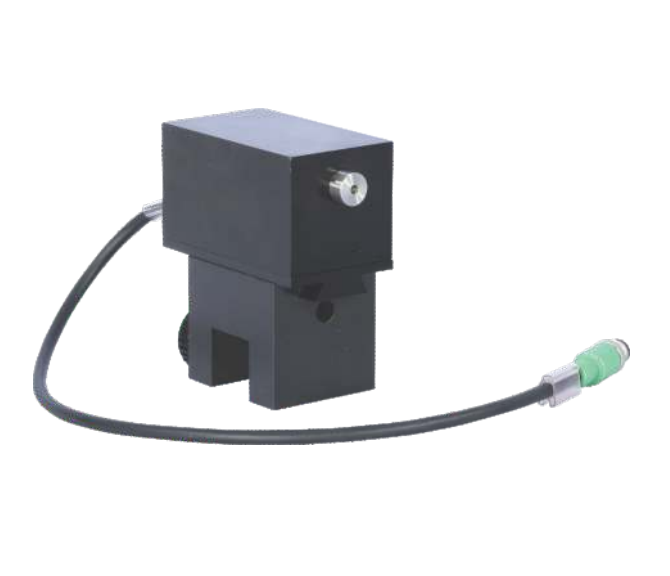

A optical colour sensor with fibre optics for individual printing station, measures registration marks and transforms them to electric pulse. The high quality lens ensures the recognition of even low contrast marks on any substrate material. LED device in place of bulb is used to provide long life light source without heating. lmm light spot allows reading small registration mark up to 3 mm. Optical colour sensor amplifies weak signals typically of light colours.

SYSTEM OVERVIEW

Colour Sensor

A optical colour sensor with fibre optics for individual printing station, measures registration marks and transforms them to electric pulse. The high quality lens ensures the recognition of even low contrast marks on any substrate material. LED device in place of bulb is used to provide long life light source without heating. lmm light spot allows reading small registration mark up to 3 mm. Optical colour sensor amplifies weak signals typically of light colours.

  • Human Machine Interface
  • Registration
  • Preset & Dryset
  • Auto Safety
  • Touch Screen

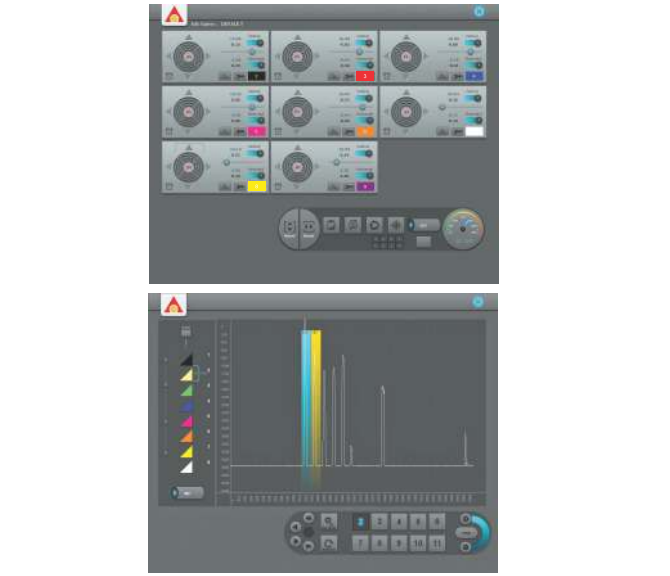

  • Main Screen Features
  • Real Time Display
  • Automatic Mark Search
